apply this HDMI Extender with a CAT5e / 6 cables to extend the HDTV display up to 30 meters 1080p, not only breaks the limitation of the lenth HDMI cable transmission but laso has more flexibility and convenience in cable construction.
this HDMI extender has many features that allow you to exercise in a superior way among the features you will find:
1. One pair as full functional module without setting.
2. CAT-5e / 6 cable can replace the HDMI cable to achieve long-distance transmission.
3. Follow the IEEE-568B standard.
4. The Transmission distance can be up to 30 Meters to 1080p through CAT-6 cable.
5. Compact size.
6. Evaluator signaling up to 1.65 Gbps in support of 1080p display.
1. Plug the HDMI connector of the sender into the HDMI source signal without HDCP, such as: Computer, Laptop, TV box, STB etc.
2. Connect the HDMI TX Single CAT-5e / 6 cables adapter, then the other end to the RX HDMI adapter to both the transmitter's output and the receiver's input.
3. Connect the fixed HDMI cable from the receiver to the HDMI monitor, such as: HD-LCD, HD-DLP etc.

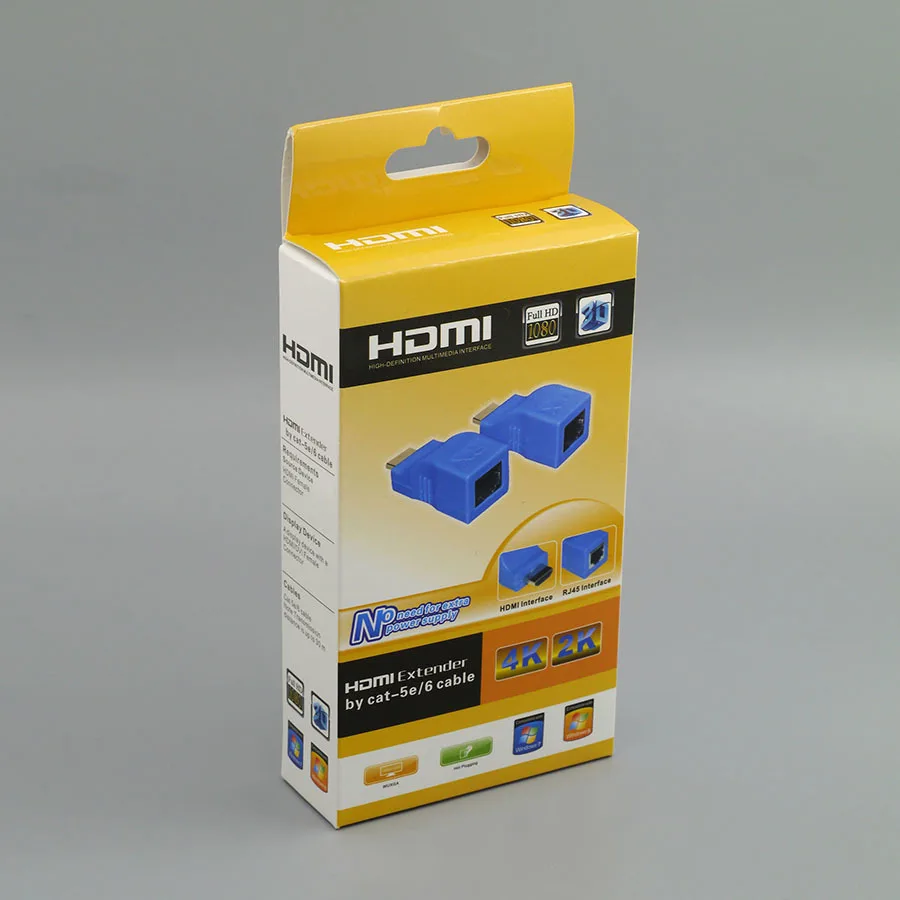

1 Pair HDMI Extender (1x HDMI Signal Adapter TX + 1x HDMI RX Signal Adapter)
1. This HEA30 does not support HDCP, Please know this before buying.
2. This Product may not support each type of display device due to compatibility issues. such as Sony display devices. please choose carefully
3. This HDMI extender can not work with tv topset.
4.4 K Resolution supports only 10 m transfer distance while 1080 P max supports 30 m. (About max support the distance of each resolution, the image quality will decrease)
