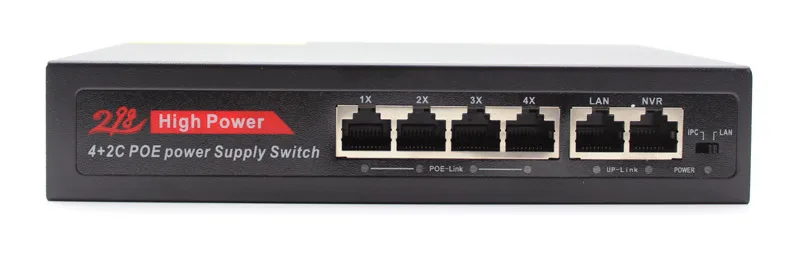

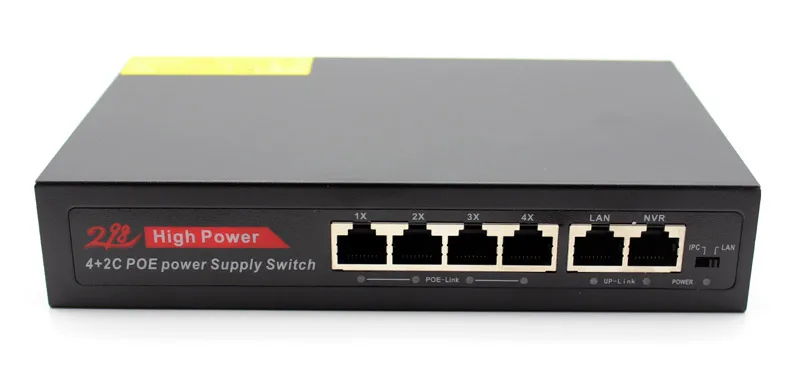

4 Port 100M POE Switch Specifications
The POE switch support IEEE802.3af/at POE standard, using advanced sensing algorithm, only for the terminal device which support the IEEE802.3af/at power over Ethernet standard, do not need to worry about damage to private standard POE or non-POE devices. Â Automatic recognition of POE damand, speed, duplex and using the Auto Uplink cable, simple and convenient to use, no need to configure, plug and play.
The POE switch designed for commercial network, for example, some need to simplify the wireless access point (AP) and network camera installation based on IP. These away from the power socket device usually hung on the wall or the ceiling height. POE eliminates the equipment specially connected with the power socket. The connection from the AC power supply equipment more flexible, simplified wiring, flexible and extensible, get rid of affection by power line layout constraints in family and office network.
Design of high performance to price ratio, compact, flexible, EC series is the idea choice of small business network to economical use of POE deployment of wireless access point (AP) and IP camera.
 Main Characteristics
* The Max distance of power supply is 300 meters.
* 6 10/100M adaptive RJ45 port, 4 port with POE function.
* Each port supports auto MDI/MDIX and auto negotiation.
* Store and forwarding, support port isolation.
* Support two lighting of uplink port.
* Support IEEE 802.3x Full-Duplex and Backpressure Half-Duplex.
* Support IEEE802.3af/at standards, can provide 15.4W/30W per port.
* Automatic detection and recognition PD device which in accordance with IEEE 802.3af/at and power supply for the device.
* Intelligent power management, if the electrical equipment power exceeds the normal power output, the system will cut off power supply of the port, after 1-2 minutes, it will reexamination and power supply.
* Low power consumption, no fan design, natural heat.
   Specifications:
POE | Support IEEE 802.3 af/at (15.4W/30W)Â Â 12+ 36- |
RJ45 Port | * Port number: 6 * POE port number: 4 * Port type: RJ45 adaptive * Part rate: 10/100M * Cable type: CAT5 or bett |
Protocol standard | * IEEE 802.3 i 10 BASE-T * IEEE 802.3 u 100 BASE-TX * IEEE 802.3 x Flow Control * IEEE 802.3 af/at Power over Ethernet |
 Performance specification | * Srore and forwarding * Bankplane bandwidth: 1 G * Transfer mode: Full-Duplex or Half-Duplex adaptive * Addressing: 48 bit MAC address * Mac Address Table: 1 K * Network delay: 100Mbps to 100Mps, less than 20ms under 64byte frame |
LED indicator | * Each Port: ACT, LINK indicator * Each Device: Power and POE indicator |
Port protection | * Meet IEC61000-4.2 (ESD) +-15KV(air),+-8KV (contactor) and can bear energy of 8/20us 24A(12A) |
POE power supply parameters | * Sigle port: 15.4W/30W * MAX Power: 65W Serials |
Power supply mode | Â * Data line 1/2 (+), 3/6 (-); spare line 4/5 (+), 7/8 (-) optional |
Power supply distance | * Maximum power distance with CAT5 UTP: 100 meters |
Authentication | * CE/LVD |
Electromagnetic compatibility | * Working temperature: 0~55°C * Storage temperature: -20~70°C * Working humidity: 10%~90%, no condensation * Storage humidity: 5%~95%, no condensation |

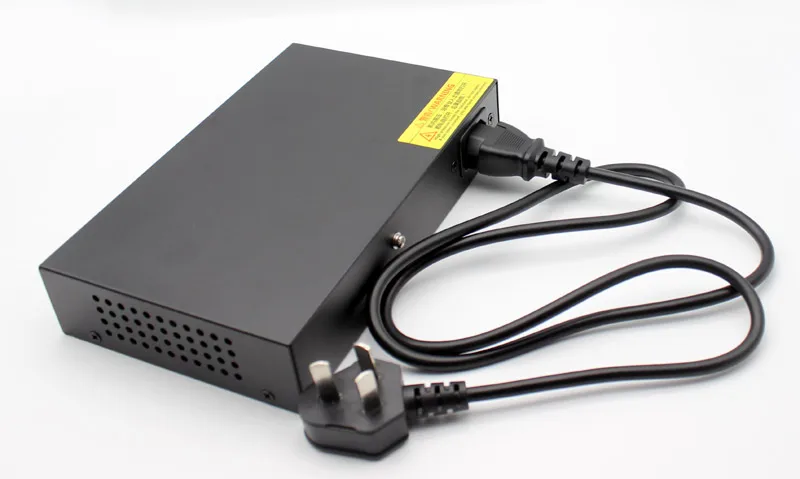

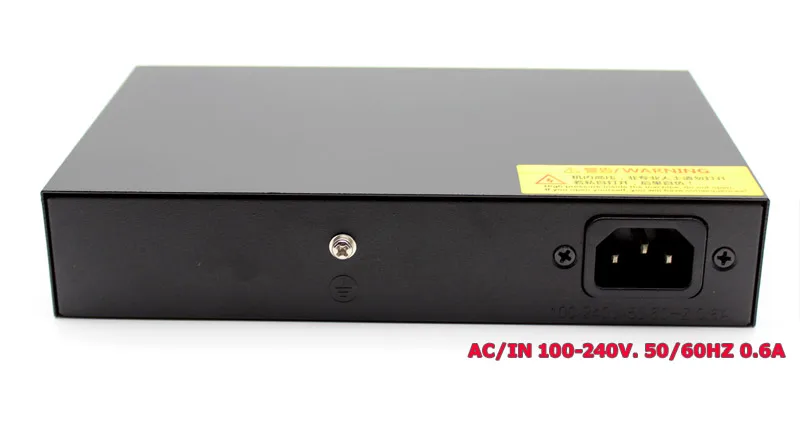

Input AC | 100V-240VÂ Â 50/60Hz |
POE out | DC 52V/1.5AÂ Â 100W |
Packaging included:
1x 4 8 16 24 Ports Smart POE switch Ethernet 10/100Mbps for IP camera
Warranty Term:Â One Year Warranty
