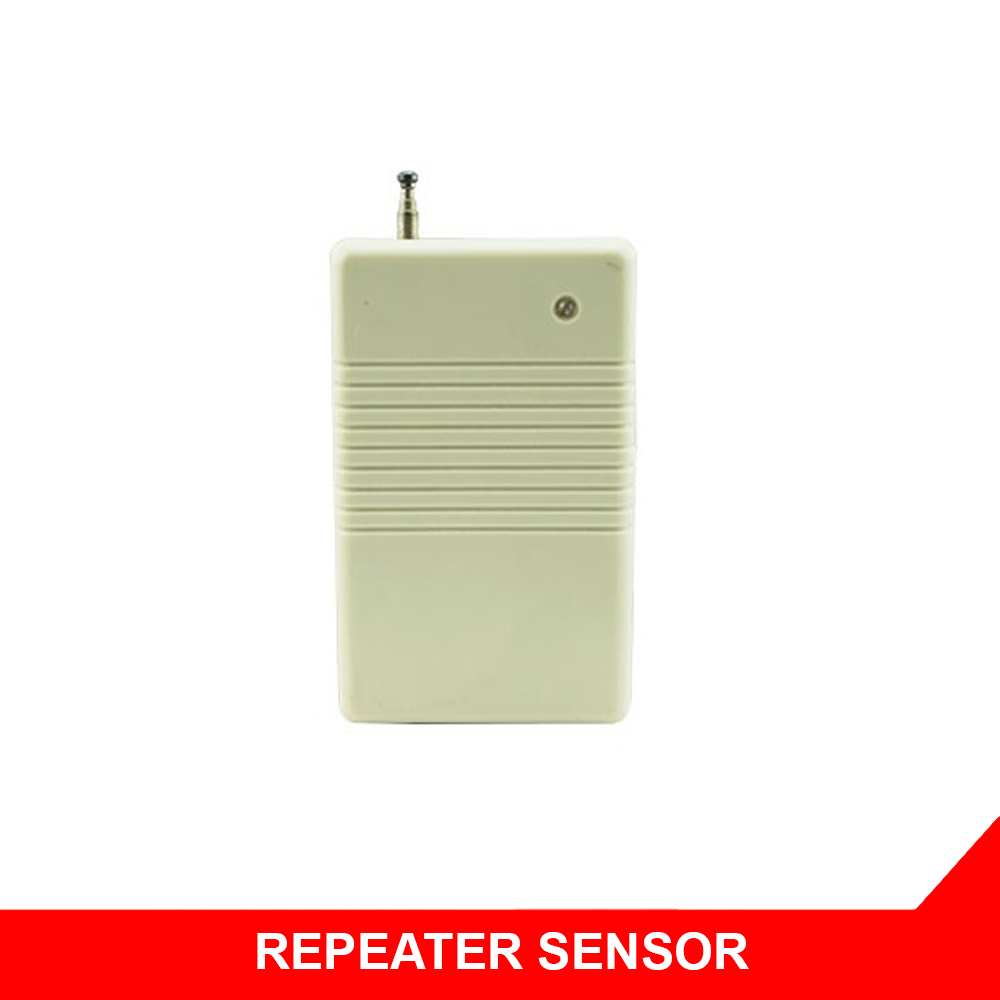

Introduction:

1. If the distance get too long between the alarm host and sensors, it will results in wireless signals didnt be transferred well, you can use this wireless repeater to solve this problem.

2. You just need to install this wireless repeater in the suitable place between alarm host and sensors, and just make the antenna out, then connect the power.

3. If the distance between the alarm host and sensors get too long, you can put this wireless repeater in each long distance place.

4. If the wireless repeater didnt get signals, LED light wont be on, and it will be on for 2 seconds if get signal successfully.

5. Normally, the distance for wireless repeater to get/transfer signals is 20 to 30 meters, so, the signals can be transferred from sensors to alarm host successfully if within this distance.

Specification:

Working Voltage: DC 12V

Operating Current: 150mA-180mA

Transmitting Frequency: 433MHz

Receiving time: 3-10 s (Not receiving signal when it transmitted)

Oscillation resistance: 1.5M-4.7M

Transmitting distance: 3000 m

Widely used in encode IC: 1527

MAX items: At most learn 100 items.
