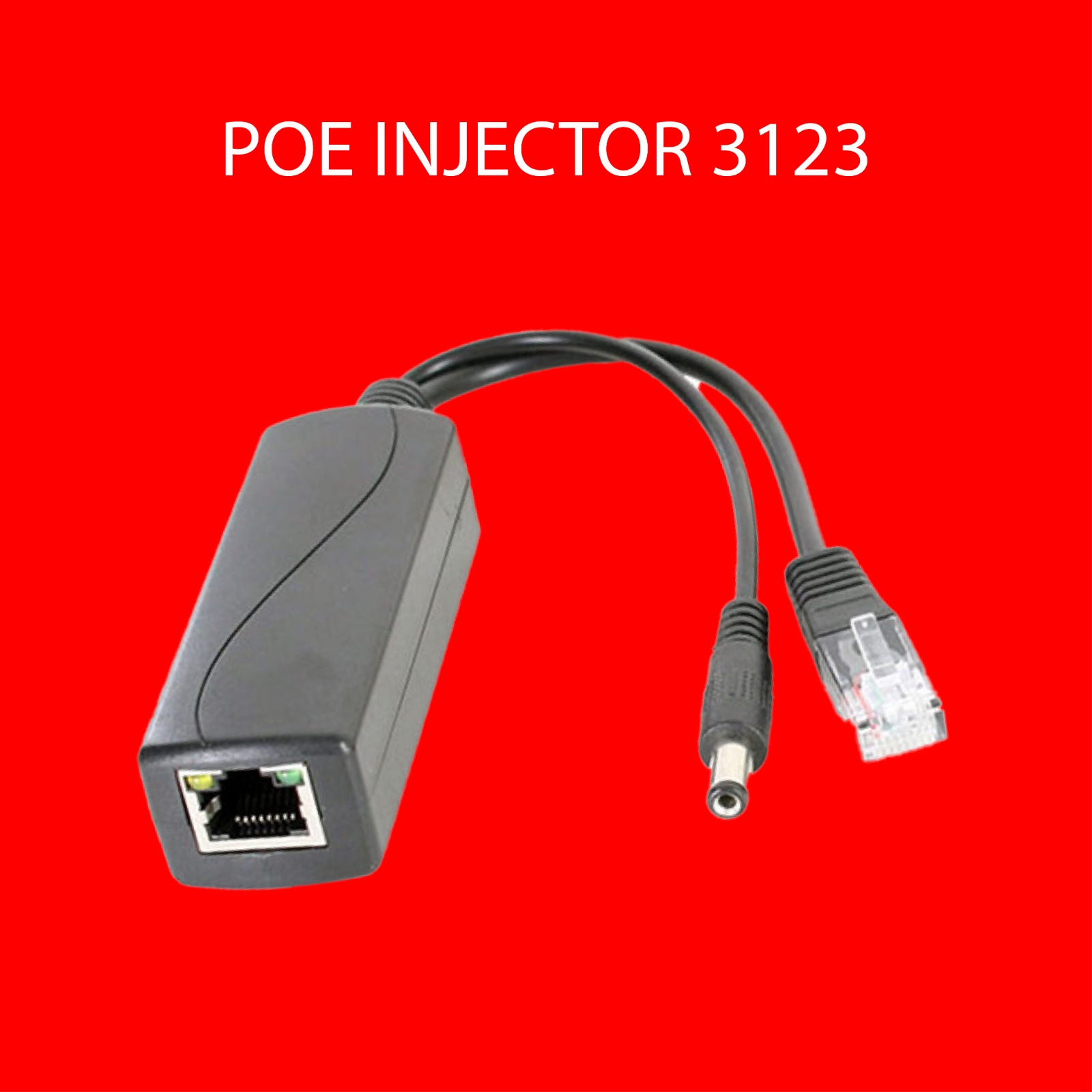

The complete Passive Power over Ethernet SET contains two pieces – INJECTOR and SPLITTER. It is suitable for using with products that basically do not support Power Over Ethernet. Passive Power Over Ethernet SET is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive Power over Ethernet SET is compatible with most devices available on the market such as D-Link, Linksys, Airlive, Senao, Wline, Micronet, Edimax etc. The devices can be supplied standardly up to 50V. (The power adapter is not included – it is possible to use the power adapter of the powered device as access point, IP camera etc.) Passive PoE`s range is normally form 30-40 metres/100-130 ft (the real distance depends on the power supply, type of cable and powered device).

Contains: INJECTOR and SPLITTER.

Complete set for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices such as D-Link, Ovislink, Senao, Wline, RouterBOARD, WRAP boards and other devices using passive POE injection.

Connector Barrel size is 2.1mm (5.5 x 2.1 mm)

Power Pins 4,5 + and 7,8 –

1. It is very simple to connect a passive PoE. On the lower part, we connect the Ethernet

RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter

to the power socket.

2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.

3. At the far end, we connect the end of the Ethernet cable to the RJ45 socket and connect

the power connectors and the Ethernet to the powered equipment. The equipment is now

connected by them.

Input / Output Specifications

DC Input Voltage 48V ± 5 %

DC Output Voltage 48V ± 5 %

Max Output Current 0.4A Max.

Over Current Protection None

General Sepcifications:

Operating Temperature 0oC ~ +45oC

Storage Temperature -30oC ~ +70oC

CASE OF MATERIAL PVC

Ethernet Date Rate 10/100Mbps

Ethernet Cable TIA/EIA 568 Cat.5

Humidity Up to 90%

Weight: 70g

DC Plugs 2.1mmx5.5mmx12mm

Length 185mm
